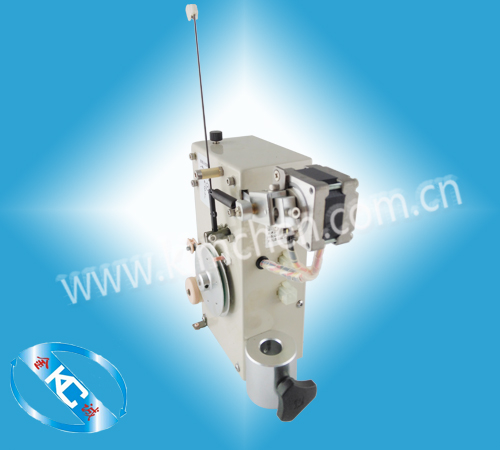

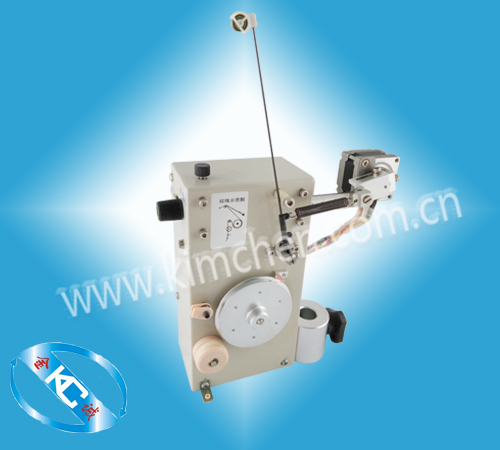

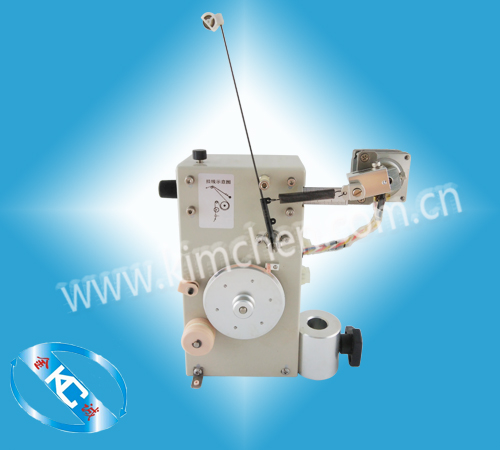

SET-R servo tension device external belt motor in the operation process can freely switch two segment tension value. Tension servo device is by the traditional passive wire feeding mode changed to take the initiative to send the line, according to the requirements of users can choose to adjust the tension of the tension device is divided into two segments, by replacing the spring tension range can be from 1g-1000g and comes with feedback tension stabilizing system, the tension balance can be automatically. The tension is not affected by the factors such as the speed of the winding, the cover, the pulley, etc. the tension is stable, and the adjustment is simple and convenient.
|
Model |
Applied wire diamiter（mm） |
Tension scope（f.g） |
|
SET-100-R |
φ0.01-φ0.12 |
1-100 |
|
SET-200-R |
φ0.02-φ0.17 |
2-200 |
|
SET-300-R |
φ0.03-φ0.22 |
5-300 |
|
SET-2000-R |
φ0.18-φ0.80 |
200-2000 |
