I、Products Features

     1、Feed the wire automatically ,and all using high-precision encoder servo motor .It has the following advantages than which using stepper motor with wire feeding mechanism.

A、Low Noise；With high precision follow ,stable tension and fast speed ,from zero to the maximum speed it can be done within 0.3s.

B、High speed torque,so with big tension range and easy to select type；；

    2、Tension is adjusted by electric drive, just press the button to adjust the tension increase or decrease。

    3、Type A/B the highest wire speed can be adjusted setting and display any value between 5~ 12m/s.

       Type C/D the highest wire speed can be adjusted setting and display any value between 8 ~ 20m/s.

    This function can be according to the different products wire speed coil winding machine to set the maximum following speed of the tensioner,guarantee the tension rod in a horizontal position so as to ensure the take -up distance.

    4、Display last product winding length ,by adjusting the tension value can truly

ensure the consistent winding length of each product ( the displayed length values are not

stretched the enameled wire by the large tension ).

II、Specification parameter list

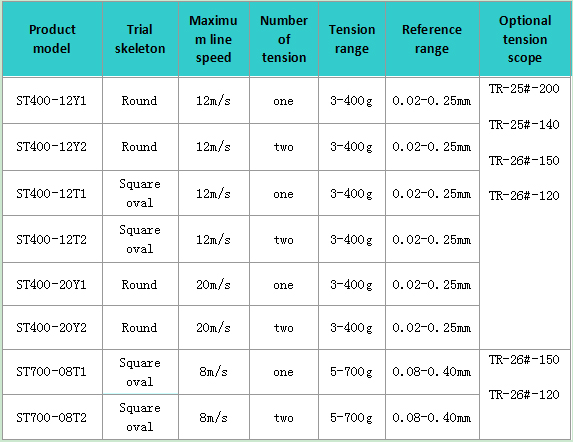

1、 Product model performance parameter table

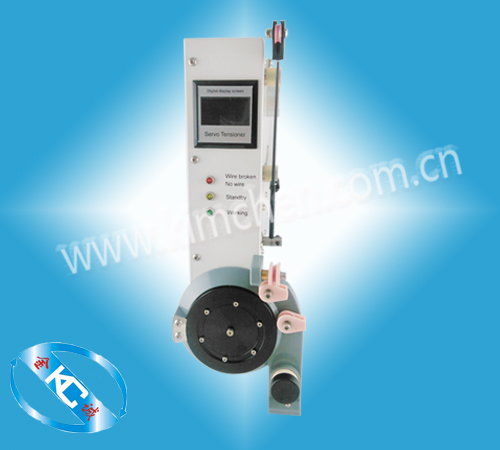

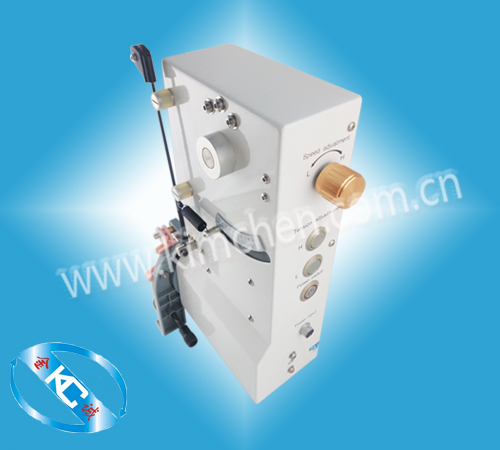

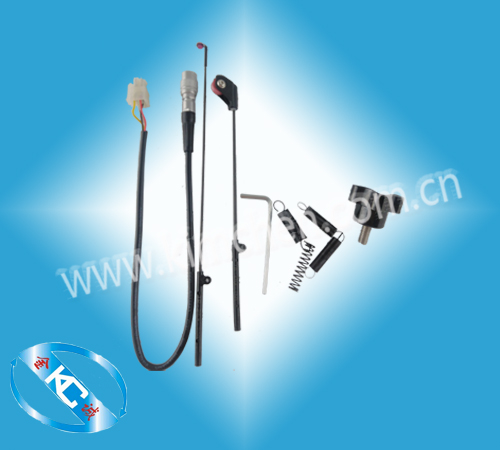

三、Product illustration
